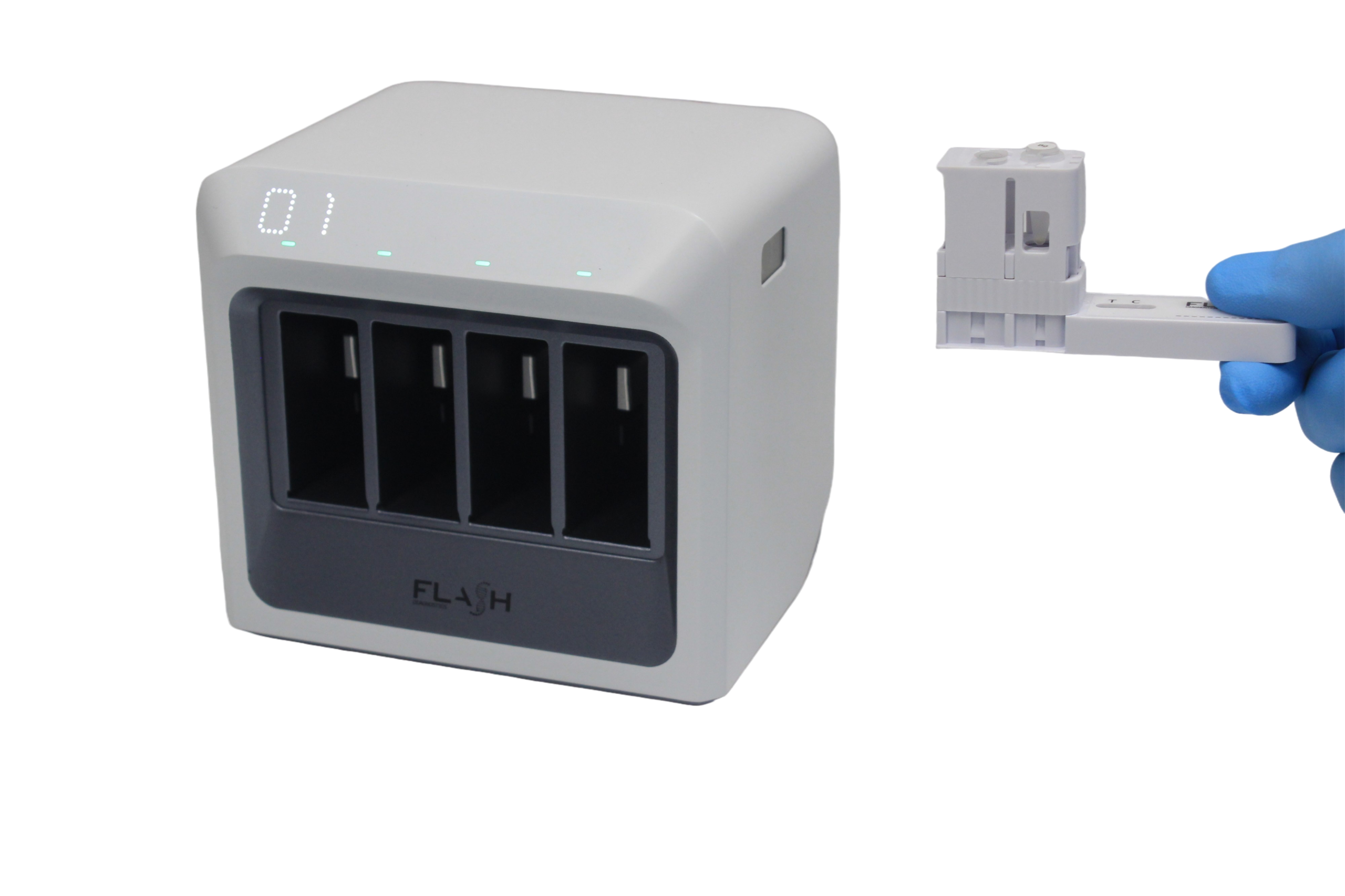

FLASH BaseTM
A compact device designed to make molecular testing fast, simple, and accessible anywhere. Built around the advanced isothermal amplification chemistry of the FLASH VetIDTM tests, the FLASH Base enables PCR-level sensitivity without the complexity, cost, or infrastructure requirements of traditional lab equipment.
- Compact footprint
- Run up to 4 independent test simultaneously
- No maintenance or calibration required
600 g
Net Weight
13 × 11 × 12
Dimensions (cm)
Up to 4
Simulatenous tests
No
Calibration or maintenance
Simple Steps to Run a Test
Tap to wake up
Scan the Test Cartridge

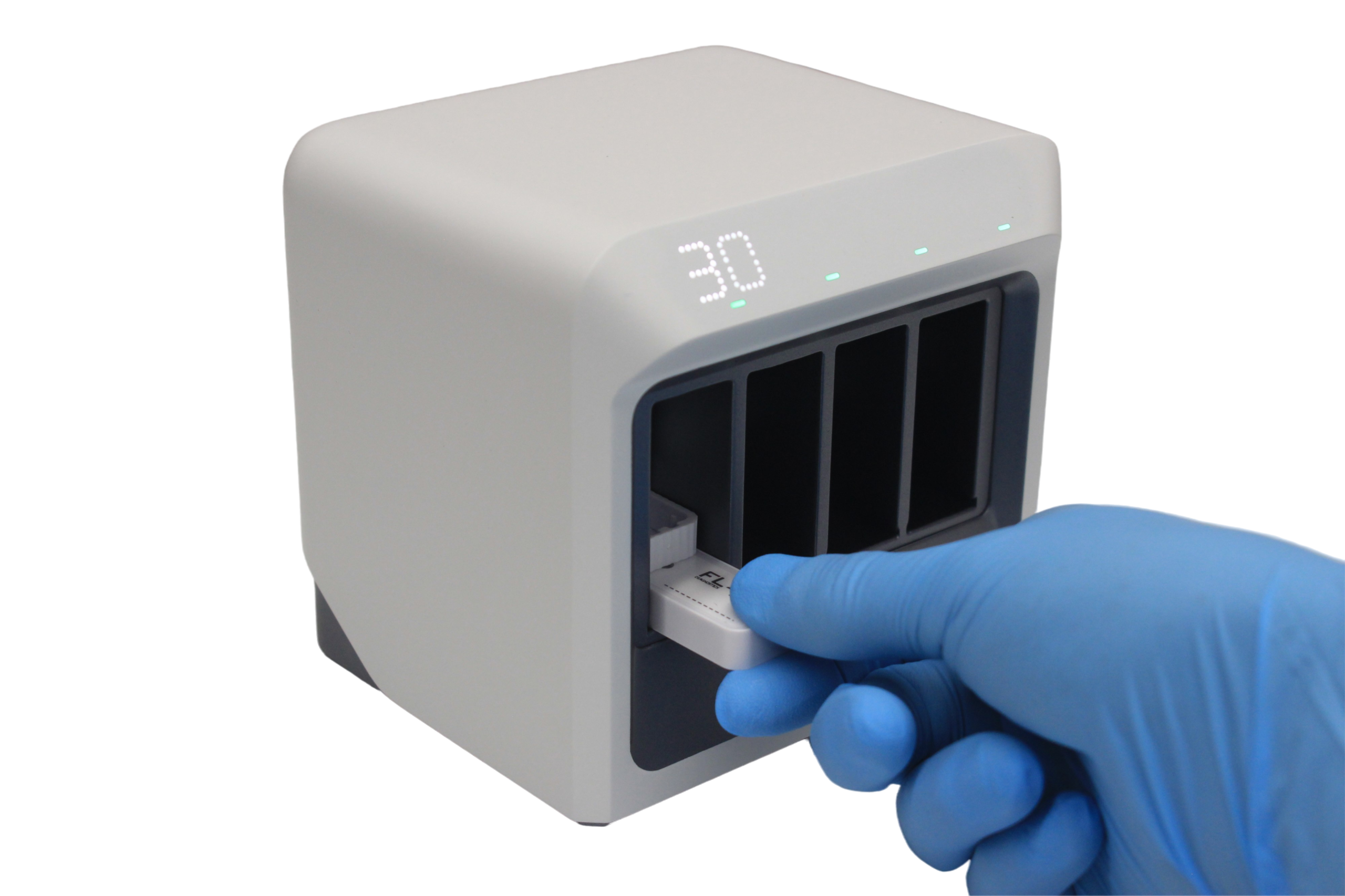

Insert the Test Cartridge
FAQs
What is the FLASH Base™?
The FLASH Base™ is a benchtop device used exclusively with FLASH VetID™ test cartridges for qualitative detection of nucleic acid targets. It authenticates each cartridge via QR code and automatically sets the correct reaction parameters. It does not perform sample processing or result interpretation itself.
The FLASH Base™ has 4 reaction slots and supports up to 4 cartridges running simultaneously.
How do I install the FLASH Base™?
It’s very simple!
Place it on a flat, stable, dry surface away from direct sunlight, vibration, and heat, with 15 cm clearance on the right side. Plug in using only the supplied AC adaptor and plug. After a self-test, an animation will appear on the LED display indicating it’s ready to use.
What power supply do I need?
15VDC, 3A, 45W. Use only the supplied AC adaptor. We do not advise using other power supplies or cables as it may cause malfunctions and trigger error warnings.
How do I start using the FLASH Base™?
Tap the sensor once to wake it from Sleep Mode (entered after 10 minutes of inactivity). All 4 LEDs will turn solid green when ready.
Scan the test cartridge’s QR code with the scanner on the right side of the BaseTM as indicated in your FLASH VetID™ test instructions, then insert the cartridge into the assigned slot (shown on the display and flashing green).
Can I start a new test while one is in progress?
Yes. You can run up to 4 tests simultaneously. Simply scan a new Test Cartridge after a reaction slot has already started running a test.
How long does a test take to complete?
Test duration depends on the specific FLASH VetID™ kit, but overall all tests take between 30 and 35 minutes. A countdown (minutes) will show on the LED display and the green LED will breathe slowly while the run is in progress.
I have more questions, where can I find more information?
For setup, operation and troubleshooting guides, and software updates, please visit the FLASH VetID Support Hub.
General information
Throughput: Up to 4 independent tests run simultaneously
Dimensions (W x L x H): 13 cm × 11 cm × 12 cm
Weight: 600 g
Display: Dot matrix numeric display with status LED indicator
Operation temperature: 15°C to 30°C (59°F to 85°F)
Power supply: 15VDC, 3A, 45W
Ordering info
Cat No.: VIDB4
More information
For setup, operation and troubleshooting guides, and software updates, please visit FLASH VetID Support Hub
